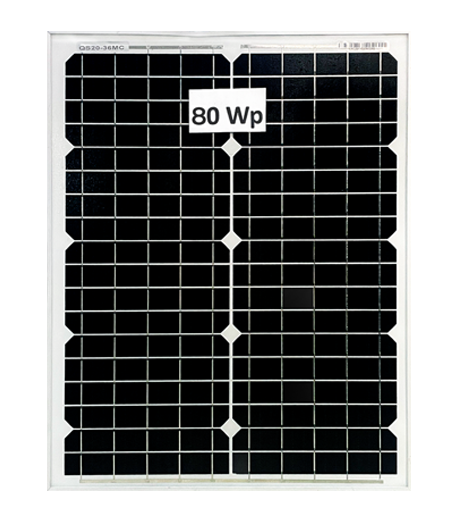

Photovoltaic (PV) module generates electrical power by converting solar radiation into direct current electricity using semiconductors or other materials that exhibit the photovoltaic effect. Solar PV modules are available in Nepal in various wattages and sizes. Mono and polycrystalline panels are mostly used these days.
Features:
- Nominal 12 V DC for standard output.
- Outstanding low-light performance.
- Heavy-duty anodized frames.
- High transparent low-iron, tempered glass.
- Rugged design to withstand high wind pressure,
- Hail and snow load.
- Aesthetic appearance.
SPECIFICATION:
• Brand: SUNBACK
• Model type: MS080M9-36
• Maximum Power (Pmax): 80W±3%
• Maximum Power Voltage (Vmp): 20.57V
• Maximum Power Current (Imp): 3.89A
• Open Circuit Voltage (Voc): 24.3V
• Short Circuit Current (Isc): 4.12A
• Maximum System Voltage: 1000V
• Maximum Series Fuse: 10A
• Standard Test Condition (E =1000W /m2 Tc =25°C AM1.5)
• Nominal Operating Cell Temperature (NOCT) 47±2°C
• For field connections, use minimum No .11 AWG copper wires Insulated for a minimum 90°C
• Product Warranty: 25 years
